Premium Quality

Tapered Spools

Engineered for excellence, our premium spools deliver unmatched performance and reliability for your industrial needs.

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

Dimensions	Flange "A"	Diameter "B"	Traverse "C"	Arbor "D"	Spools/Carton	Material
E153	8" (203mm)	4 1/2" (118mm)	6" (152.4mm)	7/8", 1 1/4"	112	All 18 GAUGE
FC33	10" (254mm)	4 1/2" (118mm)	6" (152.4mm)	1 1/4", 33mm	80	All 18 GAUGE or 16 GAUGE
FB120	14" (355mm)	7" (177mm)	10.299" (261mm)	5", 127mm	27	All 20 GAUGE

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances

Built for Performance

Precision-engineered metal spools designed for demanding industrial use.

Surface Finish

8” Tapered Spool – 8 Rib Design, 10” Tapered Spool – 12 Rib Design, 14” Tapered Spool – 16 Rib Design

Customization

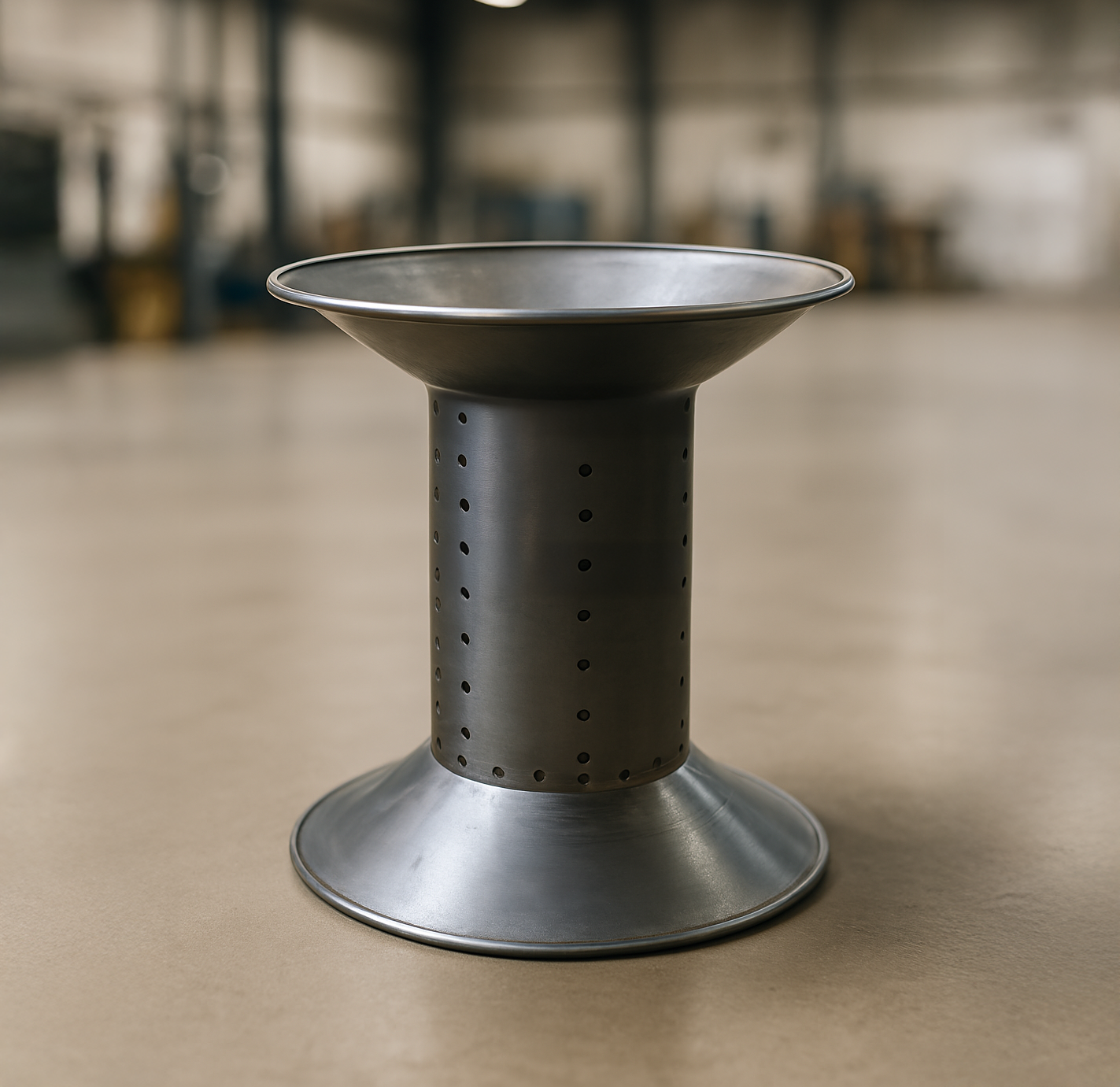

Perforated Drum, Tig welding of arbor tubes available for E153 & FC33
