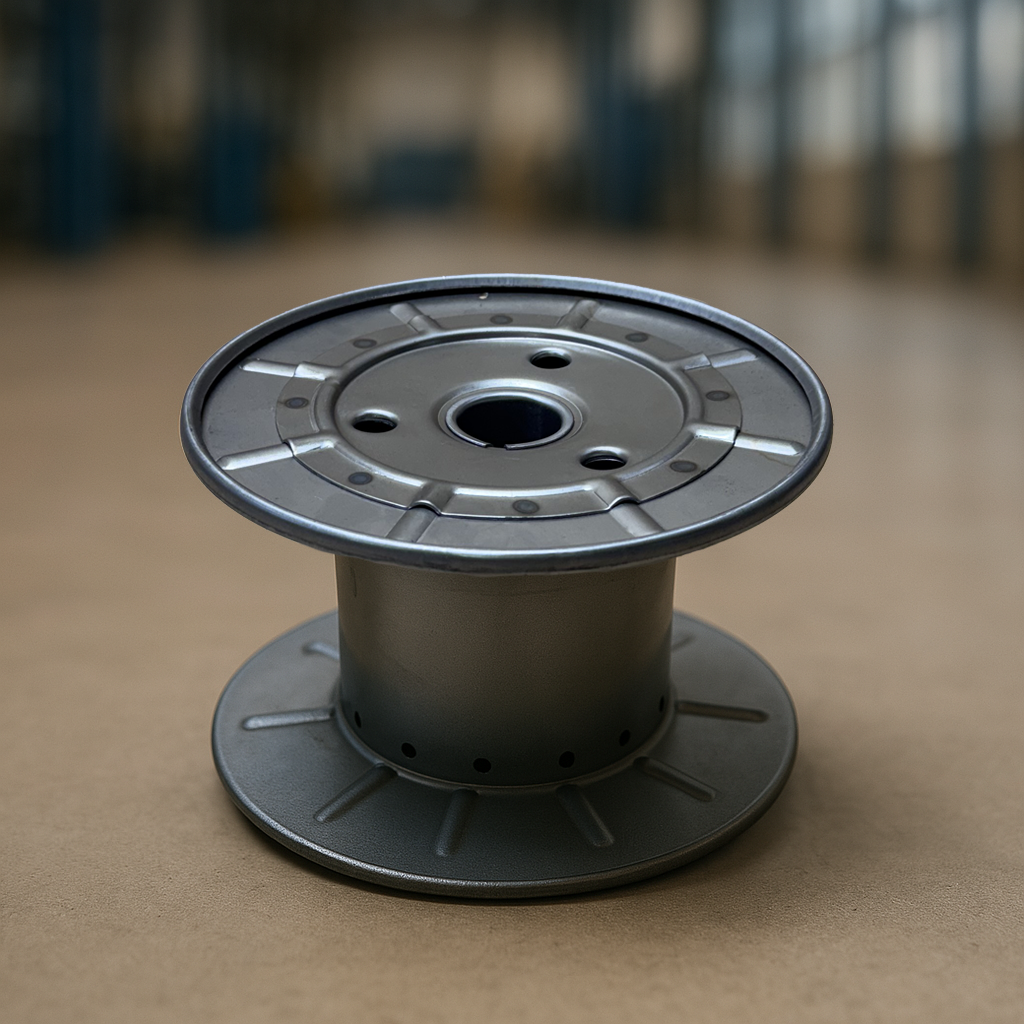

8” Spool – 8 Rib Design

Engineered for excellence, our premium spools deliver unmatched performance and reliability for your industrial needs.

Product image

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

FLANGE DIA. "A"DRUM DIA. "B"TRAVERSE SIZE "C"ARBOR SIZE "D"CAPACITY #SPOOLS/CARTONSMATERIAL STEEL
8"
4 1/2"
4 1/2"
1", 1 1/8", 1 1/4",3" or 3 1/2"
25#
140
20 GAUGE
8"
4 1/2"
6"
1", 1 1/8", 1 1/4",3" or 3 1/2"
45#
112
20 GAUGE
8"
4 1/2"
4 1/2"
7/8", 1", 1 1/4",3" or 3 1/2" WITH ARBOR TUBE
25#
140
20 GAUGE
8"
4 1/2"
6"
7/8", 1", 1 1/4",3" or 3 1/2" WITH ARBOR TUBE
45#
112
20 GAUGE
8"
4 1/2"
4 1/2"
1 1/4", 3" or 3 1/2" LARGE END PLATE WITH OR WITHOUT ARBOR TUBE
25#
140
FLANGE & DRUM 18 GAUGE END PLATE 20 GAUGE
8"
4 1/2"
6"
1 1/4", 3" or 3 1/2" LARGE END PLATE WITH OR WITHOUT ARBOR TUBE
45#
112
FLANGE & DRUM 18 GAUGE END PLATE 20 GAUGE
8" HEAVY DUTY
4 1/2"
6"
1 1/4", 3" or 3 1/2" LARGE END PLATE WITH OR WITHOUT ARBOR TUBE
45#
112
FLANGE 18 GAUGE ENDPLATE: 20 GAUGE DRUM: 16 GAUGE

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances

Built for Performance

Precision-engineered metal spools designed for demanding industrial use.

Surface Finish

Spools can be painted in a choice of colors, a minimum amount is required.

Options:

Tig welding of arbor tubes available.

6 inch metal spool
