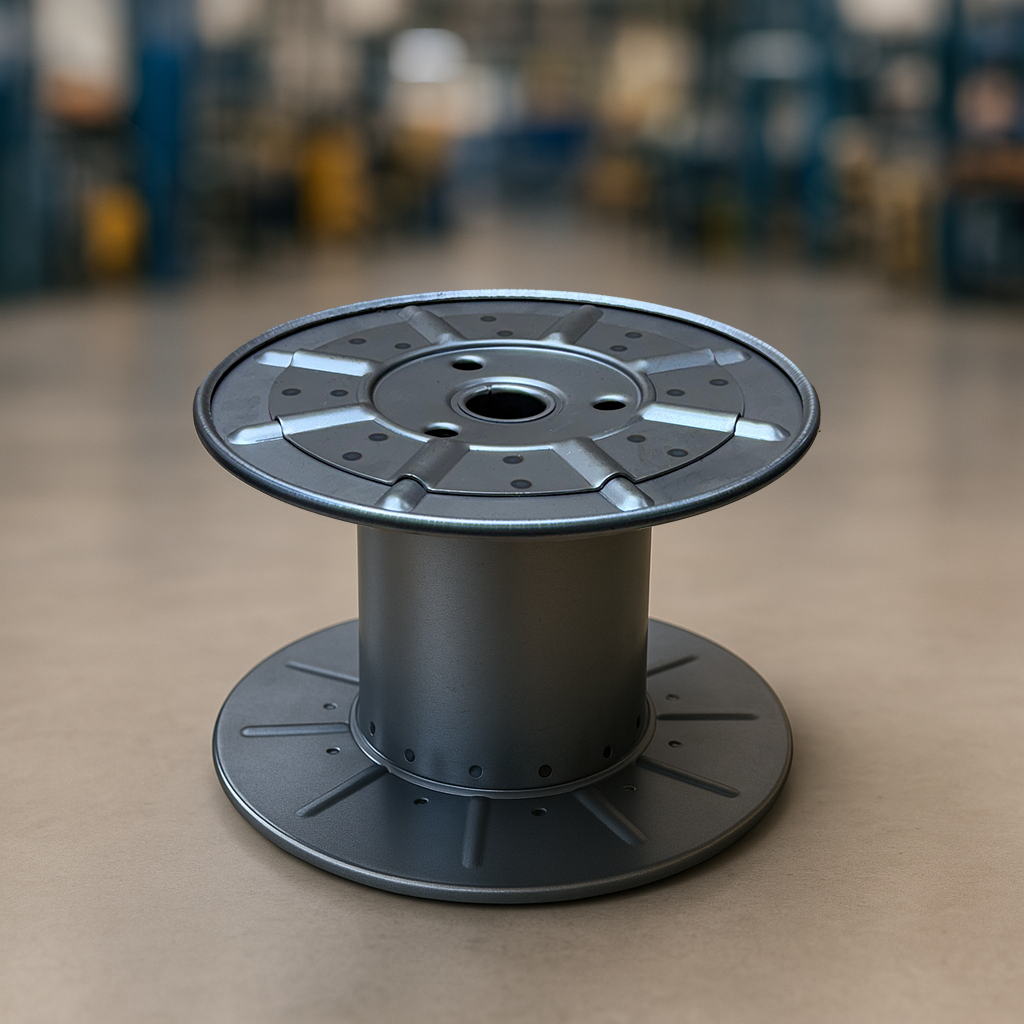

10” Spool – 8 Rib and 12 Rib Design

Engineered for excellence, our premium spools deliver unmatched performance and reliability for your industrial needs.

Product image

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

FLANGE DIA. "A"DRUM DIA. "B"TRAVERSE SIZE "C"ARBOR SIZE "D"CAPACITY #SPOOLS/CARTONSMATERIAL STEEL
10" 8 RIB DESIGN
4 1/2"
4 1/2"
7/8", 1", 1 1/8" 1 1/4", 3", 3 1/2"
45#
120
20 GAUGE
10" 8 RIB DESIGN
4 1/2"
6"
1", 1 1/8", 1 1/4" 3" or 3 1/2"
65#
100
20 GAUGE
10" 8 RIB DESIGN
4 1/2"
6"
1 1/4", 1 1/2" or 3" LARGE 18G END PLATE WITH OR WITHOUT ARBOR TUBE
65#
100
20 GAUGE
10" 8 RIB DESIGN
4 1/2"
6"
1 1/4", 1 1/2” or 3” WITH OR WITHOUT ARBOR TUBE
65#
100
ALL 18 GAUGE
10" 12 RIB DESIGN
4 1/2"
6"
1 1/4" or 33mm WITH OR WITHOUT ARBOR TUBE
50# / 65#
100
ALL 18 GAUGE
10" 12 RIB HEAVY DUTY
4 1/2"
6"
1 1/4" or 33mm WITH OR WITHOUT ARBOR TUBE
50# / 65#
100
ALL 18 GAUGE

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances
