Premium Quality

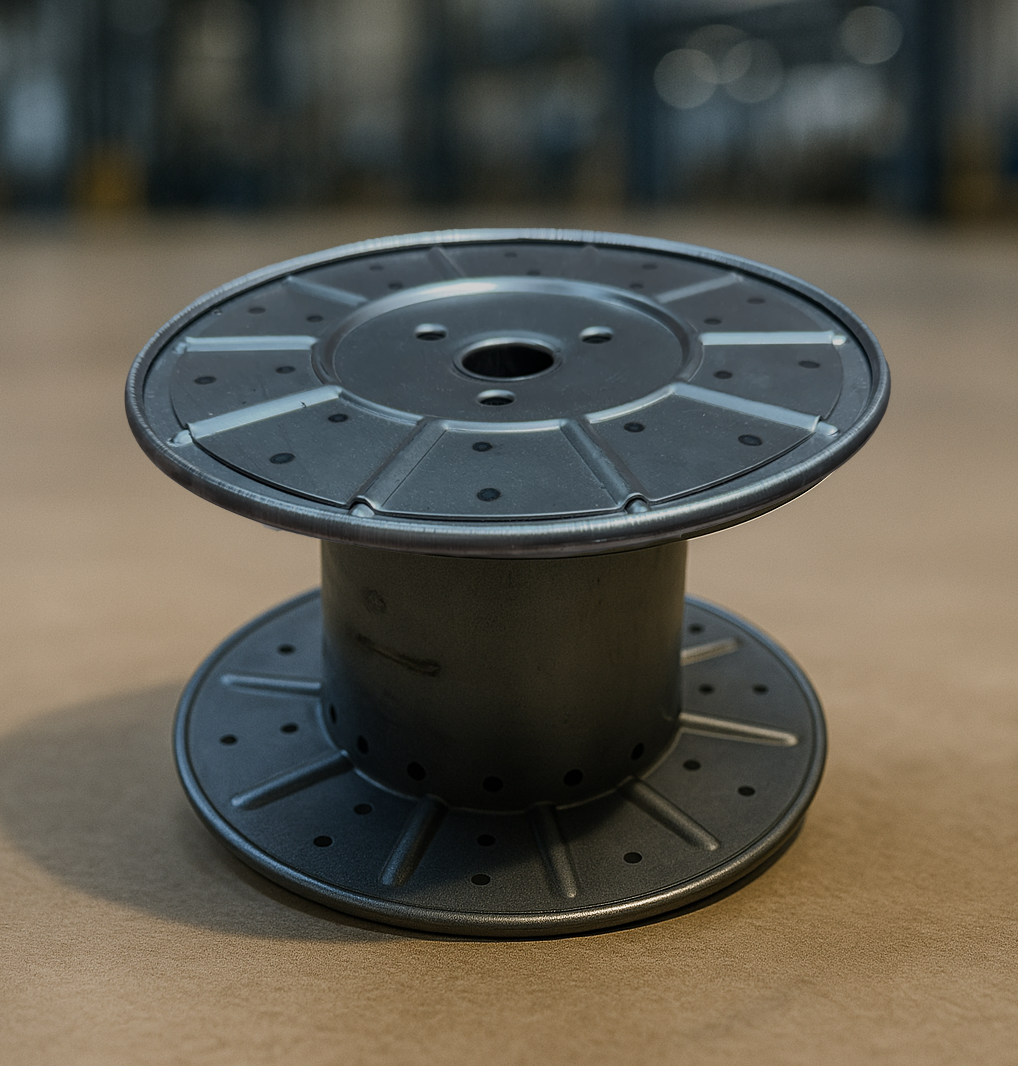

12.75” Spool – 10 Rib Design

High-quality 12.75” spools designed for industrial applications with precise dimensions and reliable performance.

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

FLANGE DIA. "A"	DRUM DIA. "B"	TRAVERSE SIZE "C"	ARBOR SIZE "D"	CAPACITY #	SPOOLS/CARTON	MATERIAL STEEL
12 3/4"	6"	6"	1 1/4", 1 1/2",3”, or 33mm WITH ARBOR TUBE	110#	44	16 GAUGE optional 16 gauge drum and cap available
12 3/4"	6"	6 1/2"	1 1/4", 1 1/2",3”, or 33mm WITH ARBOR TUBE	125#	44	16 GAUGE optional 16 gauge drum and cap available
12 3/4"	6"	7"	1 1/4", 1 1/2",3”, or 33mm WITH ARBOR TUBE	135#	44	16 GAUGE optional 16 gauge drum and cap available
12 3/4"	6"	8"	1 1/4", 1 1/2",3”, or 33mm WITH ARBOR TUBE	150#	44	16 GAUGE optional 16 gauge drum and cap available
12 3/4"	6"	9"	1 1/4", 1 1/2",3”, or 33mm WITH ARBOR TUBE	165#	33	16 GAUGE optional 16 gauge drum and cap available

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances

Built for Performance

Precision-engineered metal spools designed for demanding industrial use.

Surface Finish

Spools can be painted in a choice of colors, a minimum amount is required.

Options

Tig welding of arbor tubes available.
