Premium Quality

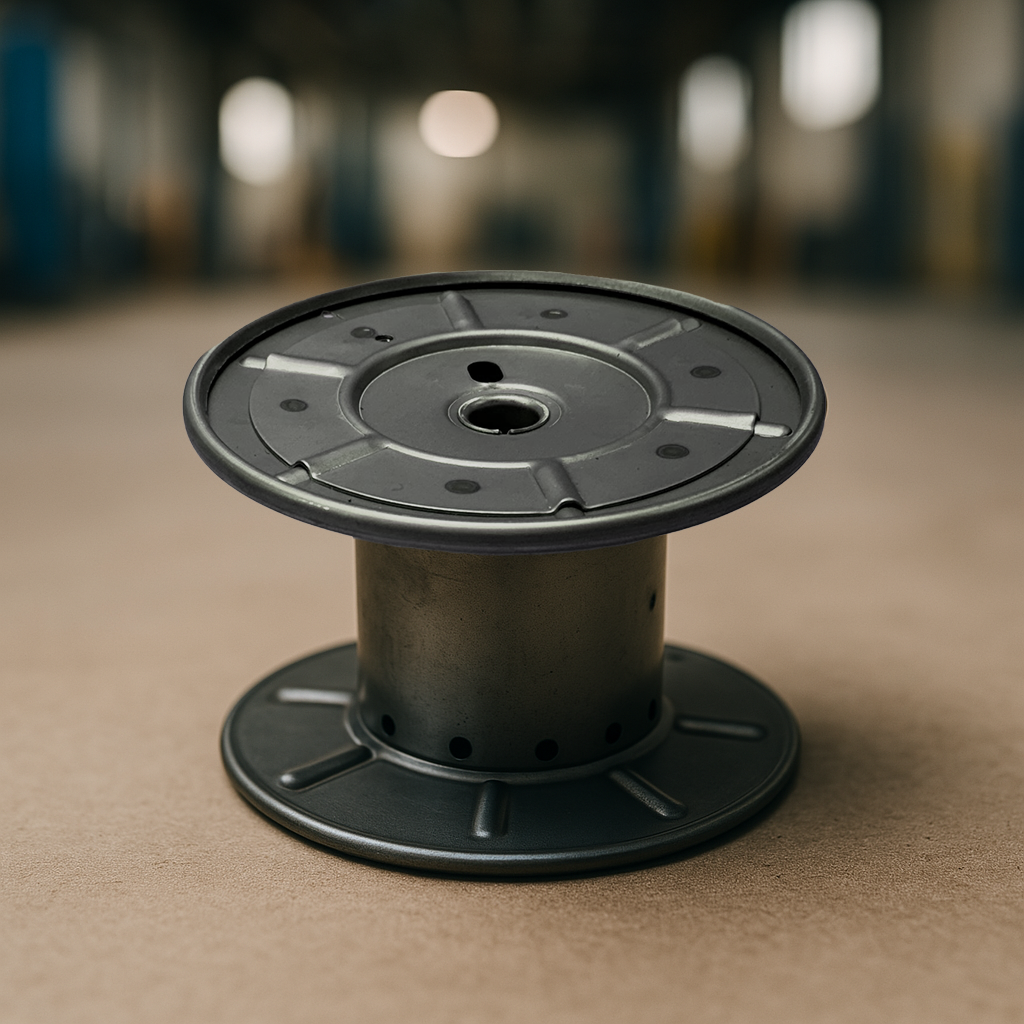

6" Spool – 6 Rib Design

Engineered for durability and precision, our metal spools are designed to meet the demanding requirements of modern industrial applications.

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

FLANGE DIA. "A"	DRUM DIA. "B"	TRAVERSE SIZE "C"	ARBOR SIZE "D"	CAPACITY #	SPOOLS/CARTONS	MATERIAL STEEL
6"	3"	3"	5/8", 3/4" or 1 1/4"	10#	440	20 GAUGE
6"	3"	3 1/2"	5/8", 3/4" or 1 1/4"	12#	440	20 GAUGE
6"	3"	4" to 6"	5/8", 3/4" or 1 1/4"	13# to 20#	Depends on Traverse	20 GAUGE
6"	3"	3"	5/8" with Arbor Tube	10#	440	20 GAUGE
6"	3"	3 1/2"	5/8" with Arbor Tube	12#	440	20 GAUGE
6"	3"	6"	5/8" with Arbor Tube	20#	220	20 GAUGE

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances

Built for Performance

Precision-engineered metal spools designed for demanding industrial use.

Surface Finish

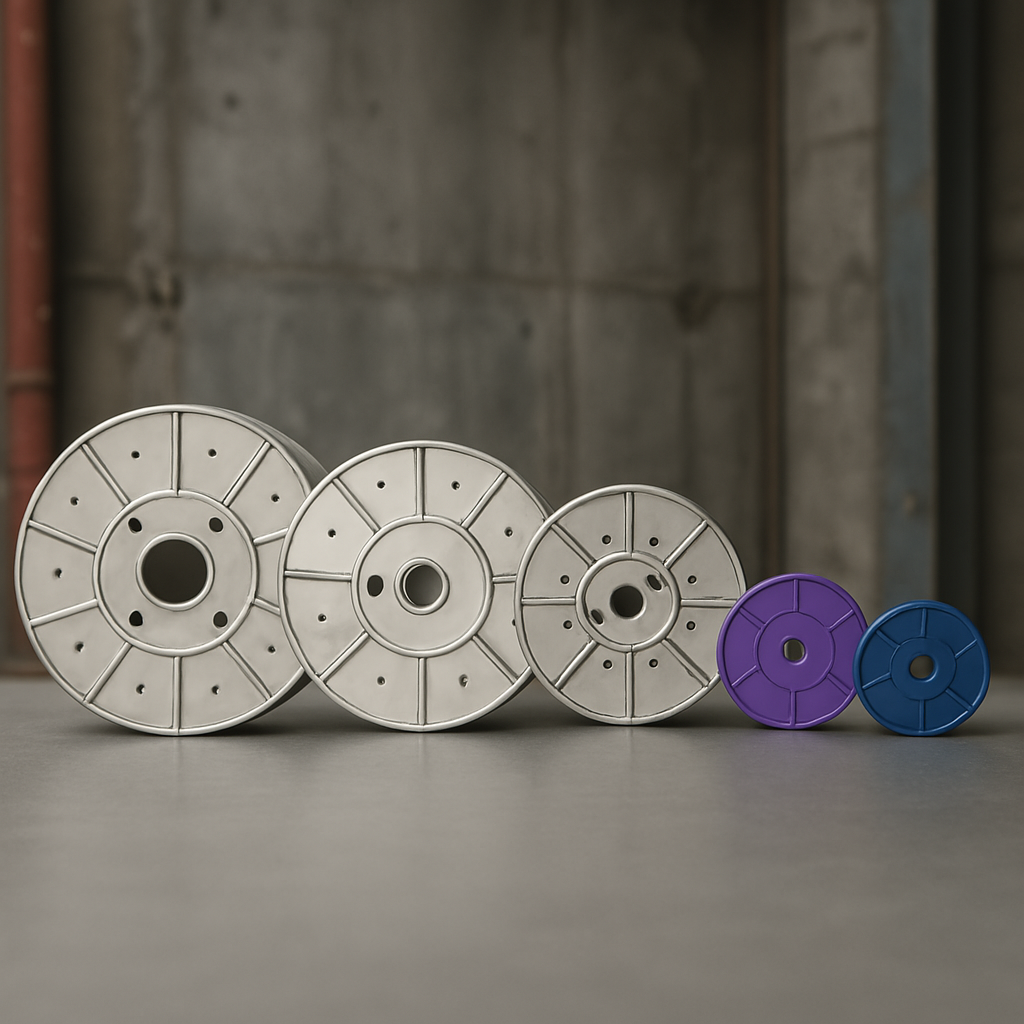

Spools can be painted in a choice of colors, a minimum amount is required.

Options:

Drums are available in 18 gauge steel. Tig welding of arbor tubes available.
