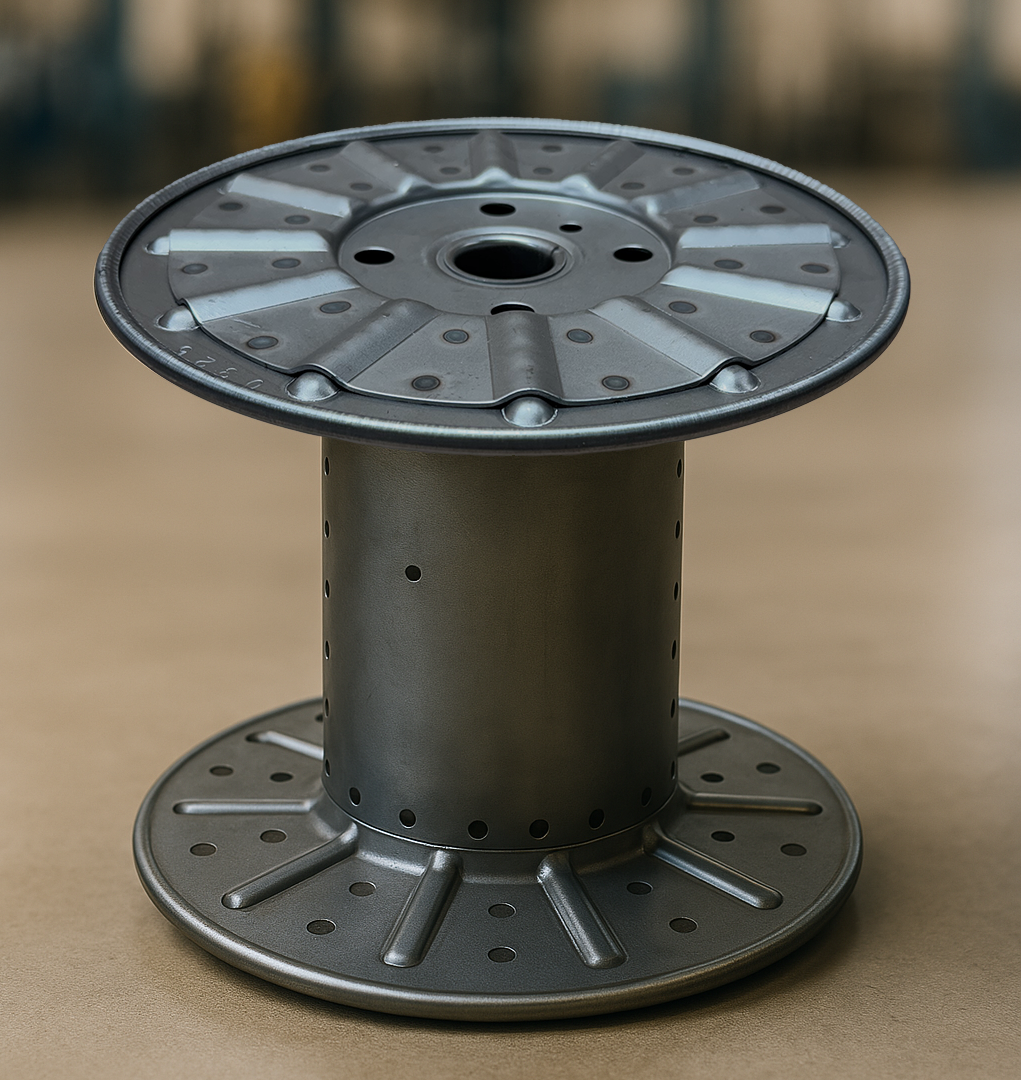

12″ Spool – 10 Rib Design Heavy Duty

Engineered for excellence, our premium spools deliver unmatched performance and reliability for your industrial needs.

Technical Specifications

Comprehensive measurements and detailed specifications for our premium industrial-grade metal spools. Built to exact standards for optimal performance.

Spool Specifications

Detailed specifications and measurements for our industrial spools

FLANGE DIA. "A"	DRUM DIA. "B"	TRAVERSE SIZE "C"	ARBOR SIZE "D"	CAPACITY #	SPOOLS/CARTONS	MATERIAL STEEL
12"	6"	6"	1 1/4", 1 1/2", 3”, or 33mm WITH ARBOR TUBE	100#	48	18 GAUGE FLANGE 16 GAUGE DRUM & END PLATE
12"	6"	6 1/2"	1 1/4", 1 1/2", 3”, or 33mm WITH ARBOR TUBE	115#	48	18 GAUGE FLANGE 16 GAUGE DRUM & END PLATE
12"	6"	7"	1 1/4", 1 1/2", 3”, or 33mm WITH ARBOR TUBE	125#	48	18 GAUGE FLANGE 16 GAUGE DRUM & END PLATE
12"	6"	8"	1 1/4", 1 1/2", 3”, or 33mm WITH ARBOR TUBE	135#	48	18 GAUGE FLANGE 16 GAUGE DRUM & END PLATE
12"	6"	9"	1 1/4", 1 1/2", 3”, or 33mm WITH ARBOR TUBE	150#	36	18 GAUGE FLANGE 16 GAUGE DRUM & END PLATE

Scroll horizontally to view all columns in the table

* All measurements are approximate and subject to manufacturing tolerances

Built for Performance

Precision-engineered metal spools designed for demanding industrial use.

Surface Finish

Spools can be painted in a choice of colors, a minimum amount is required.

Options

Tig welding of arbor tubes available.
